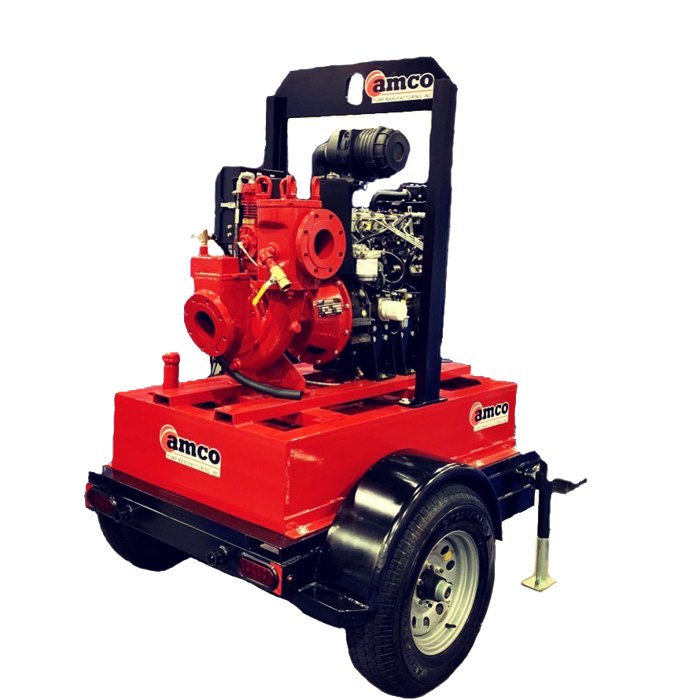

APCD100
4" x 4" Auto-Prime Pump
- Suction x Discharge
- 4" x 4"
- Max Flow
- 1,010 gpm
- Max Head
- 125'
- Solids Handling
- Up to 2"
- Fuel Capacity
- 50+ gallons
- Impeller Diameter
- 9.1"
- HP @ RPM
- 49 @ 2200
APCD Series
APCD Auto-Prime Series
The APCD Series is comprised of pumps and parts that are 100% interchangeable with the Godwin® CD Series. This series is ideal for dewatering and sewer bypass applications, transporting solids-handling fluids, sludge and raw sewage.

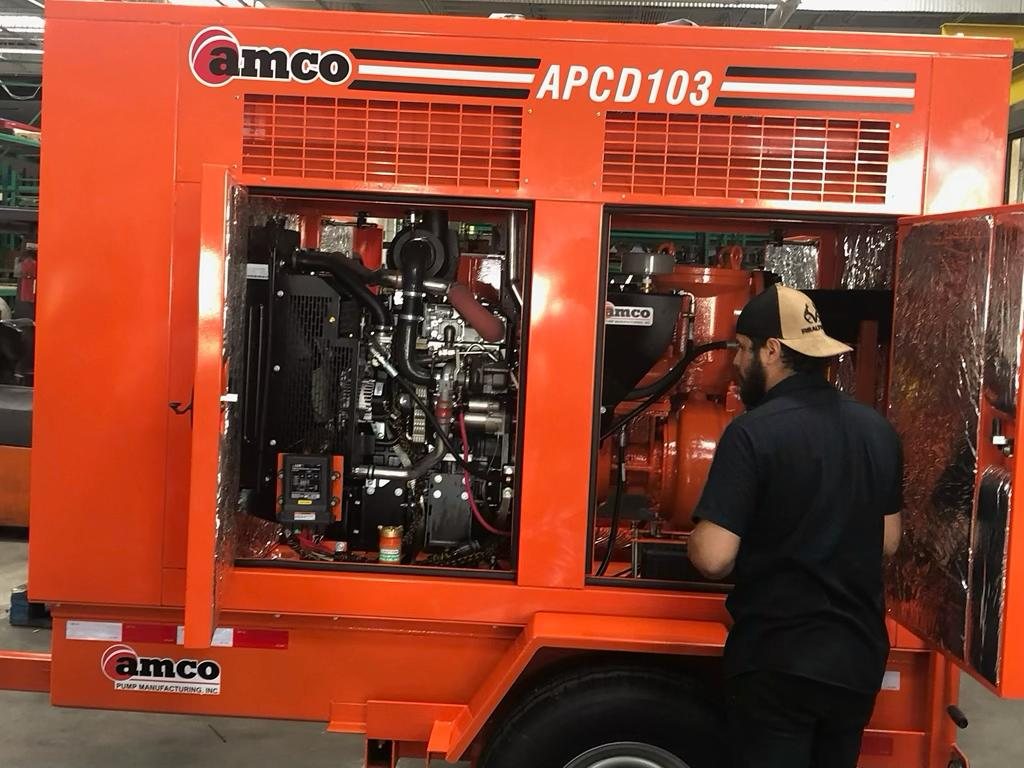

Engineered with a venturi prime system, these pumps prime automatically from dry up to 28' of suction lift. A liquid-bath mechanical seal design allows them to run dry indefinitely. Available trailer-mount, skid-mount and sound-attenuated configurations.
335 KB PDF · 2 pages · AMCO-APCD-Series-Datasheet.pdf

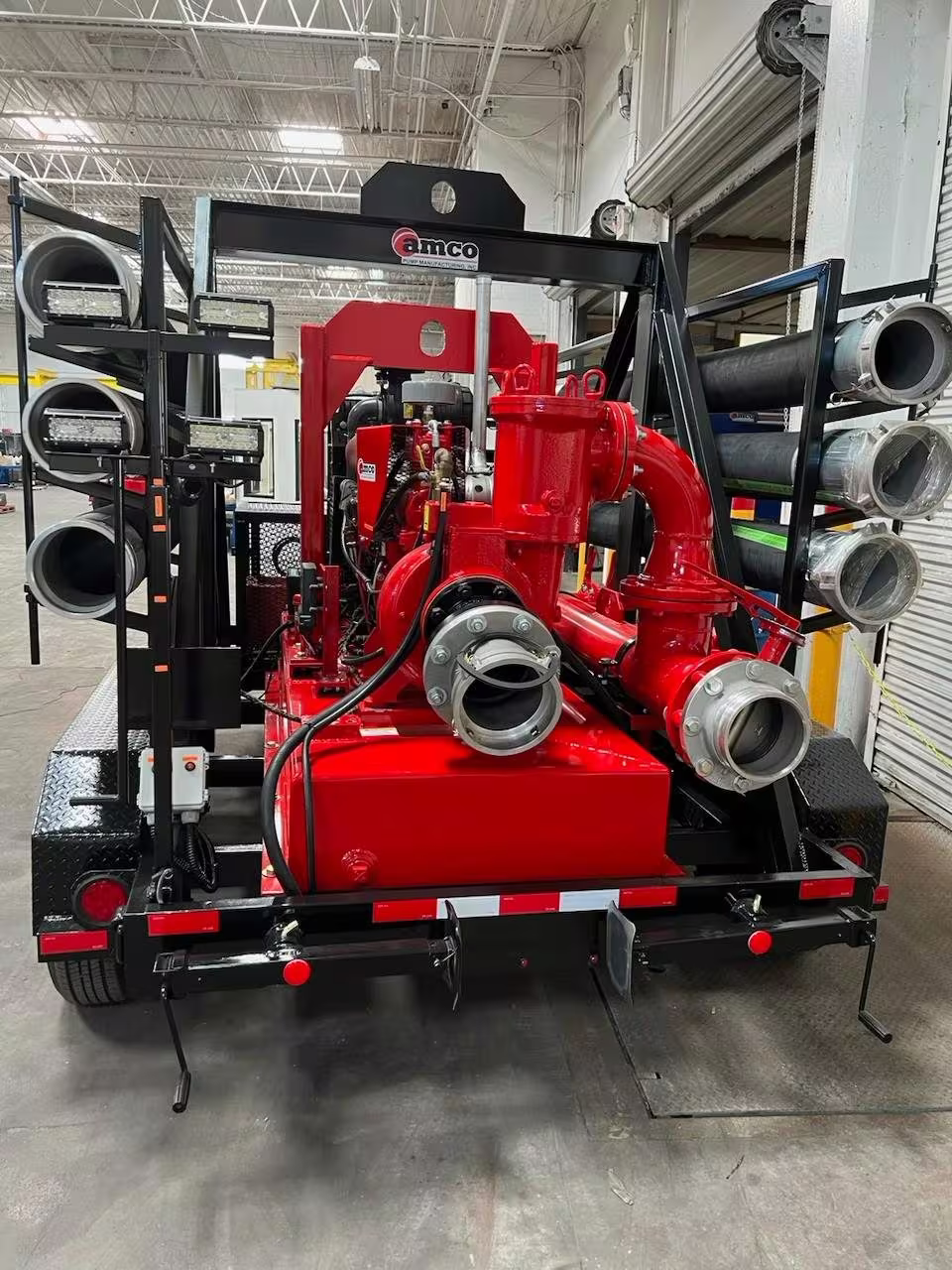

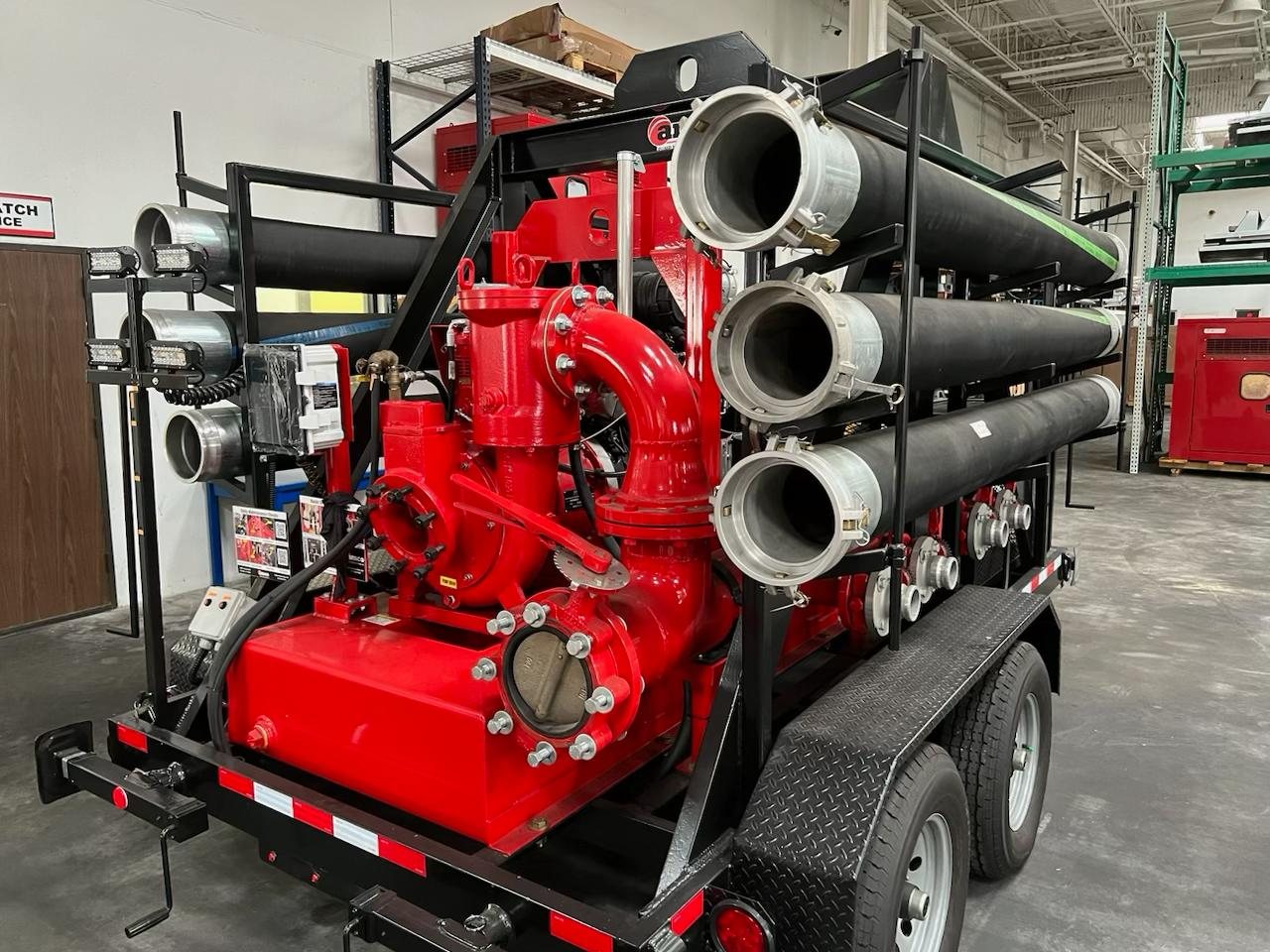

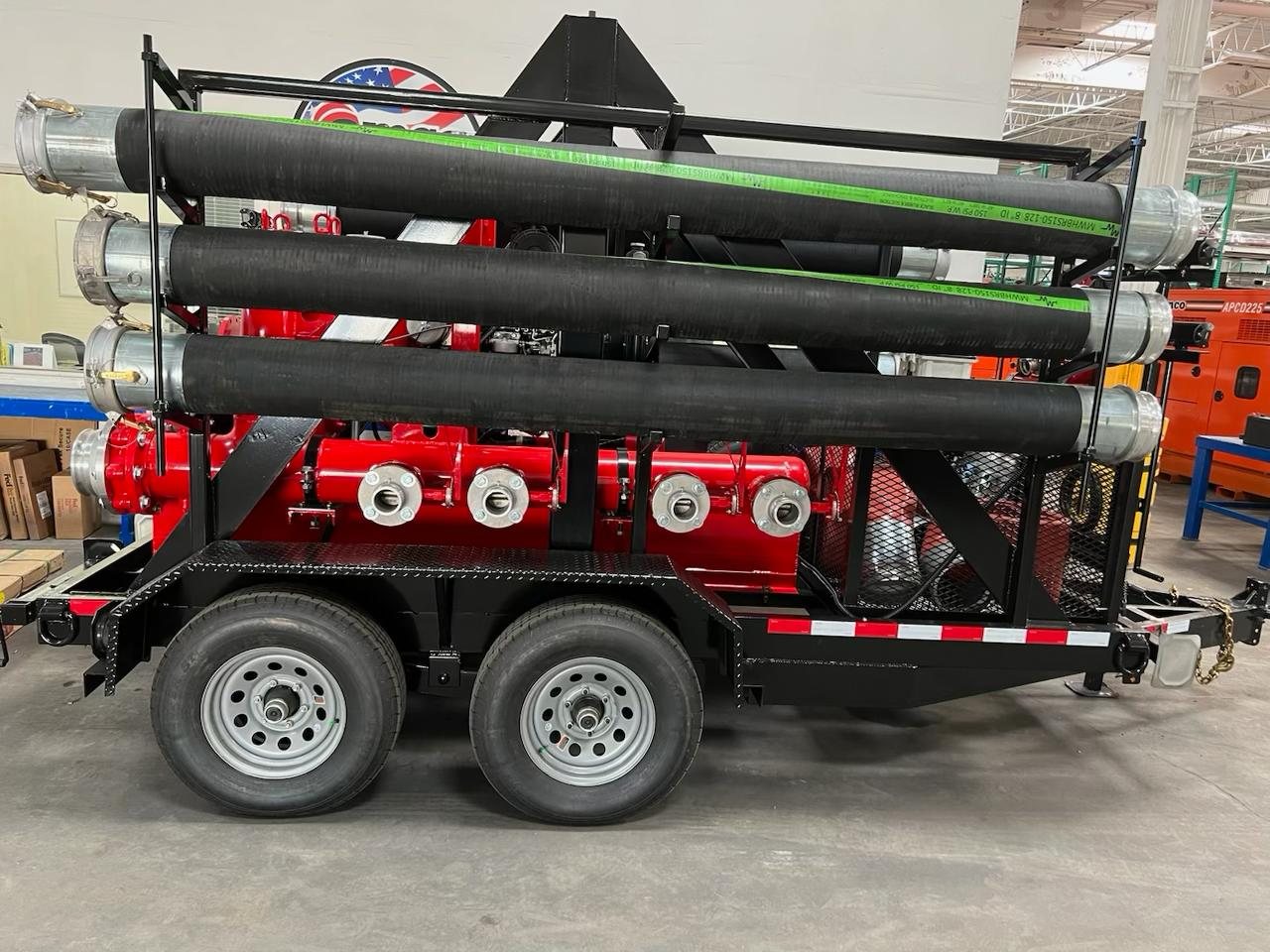

APCD trailer package with integrated suction pipe racks

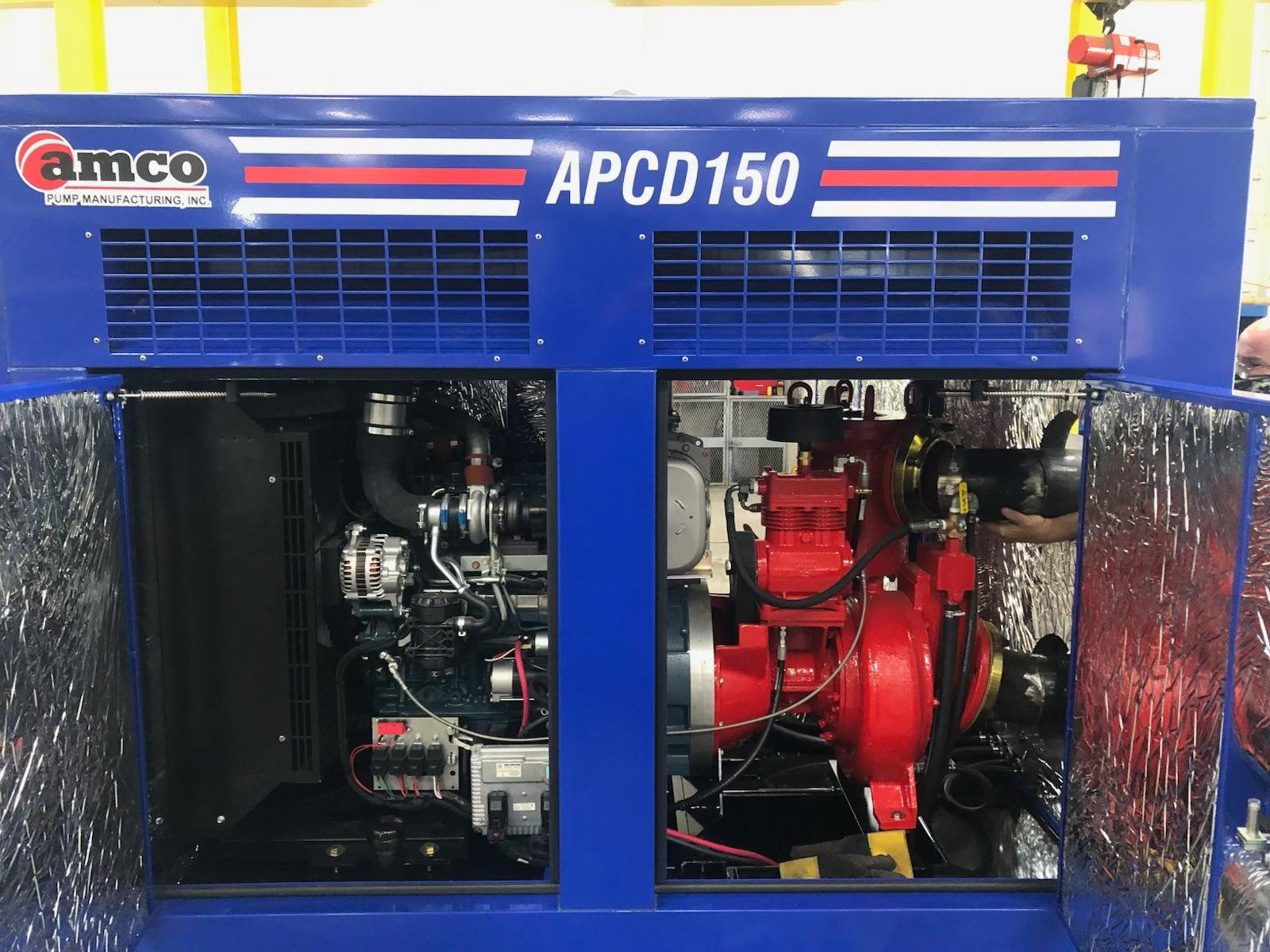

6 shop photos — click to zoom and pan
Specifications
APCD models
Performance figures are nominal at the stated engine speed. Contact us for a duty-point curve on your application.
APCD150
6" x 6" Auto-Prime Pump
- Suction x Discharge
- 6" x 6"
- Max Flow
- 2,250 gpm
- Max Head
- 160'
- Solids Handling
- Up to 3"
- Fuel Capacity
- 75+ gallons
- Impeller Diameter
- 11"
- HP @ RPM
- 74 @ 2200

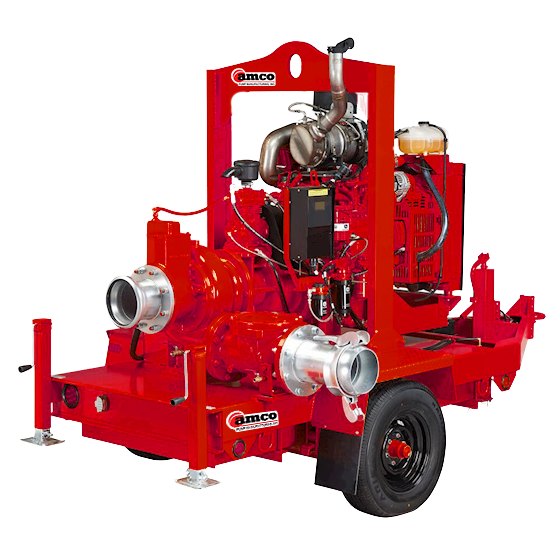

APCD225
8" x 8" Auto-Prime Pump
- Suction x Discharge
- 8" x 8"
- Max Flow
- 3,250 gpm
- Max Head
- 170'
- Solids Handling
- Up to 3-1/8"
- Fuel Capacity
- 120+ gallons
- Impeller Diameter
- 11.4"
- HP @ RPM
- 115 @ 2200
APCD model comparison
Key specifications for every APCD model side by side. Figures are nominal at the stated engine speed.
| Specification | APCD1004" x 4" Auto-Prime Pump | APCD1506" x 6" Auto-Prime Pump | APCD2258" x 8" Auto-Prime Pump |
|---|---|---|---|
| Suction x Discharge | 4" x 4" | 6" x 6" | 8" x 8" |
| Max Flow | 1,010 gpm | 2,250 gpm | 3,250 gpm |
| Max Head | 125' | 160' | 170' |
| Solids Handling | Up to 2" | Up to 3" | Up to 3-1/8" |
| Fuel Capacity | 50+ gallons | 75+ gallons | 120+ gallons |
| Impeller Diameter | 9.1" | 11" | 11.4" |
| HP @ RPM | 49 @ 2200 | 74 @ 2200 | 115 @ 2200 |
Auto-prime notes
Every APCD unit is a dry-prime, diaphragm-assisted vacuum pump: the compressor-driven priming system pulls air out of the suction line so the pump primes and re-primes itself without an operator at the unit.
- Fully automatic dry prime — the vacuum system evacuates the suction line and shuts off once liquid reaches the pump end.
- Run-dry capable: the mechanical seal is oil-lubricated in its own chamber, so snore and dry-run conditions do not damage the seal faces.
- Continuous snore operation for sump and wellpoint duty — the pump re-primes each time the level recovers.
- Suction lift to roughly 28 ft of static lift; keep suction hose runs short and airtight for the fastest prime time.
- Priming times shorten with a flooded suction and lengthen on long, high-lift suction lines.
- Air-handling separation chamber keeps carryover out of the vacuum pump on entrained-air applications.
- Auto start/stop float control and the critically silenced enclosure make unattended overnight bypass duty practical.
Applications
Typical duty
- Construction dewatering
- Sewer bypass
- Municipal wastewater
- Flood and emergency response
Configuration options
- Highway trailer, single-axle site trailer or bolt-down skid base
- Diesel engine or electric motor drive
- Critically silenced acoustic enclosure (~69 dBA at 30 ft)
- Extended-run fuel cells and containment bases
- Ductile iron wet end with open impeller for solids passage
Tell us your flow, total head and solids size and we will size the unit for you.
Performance

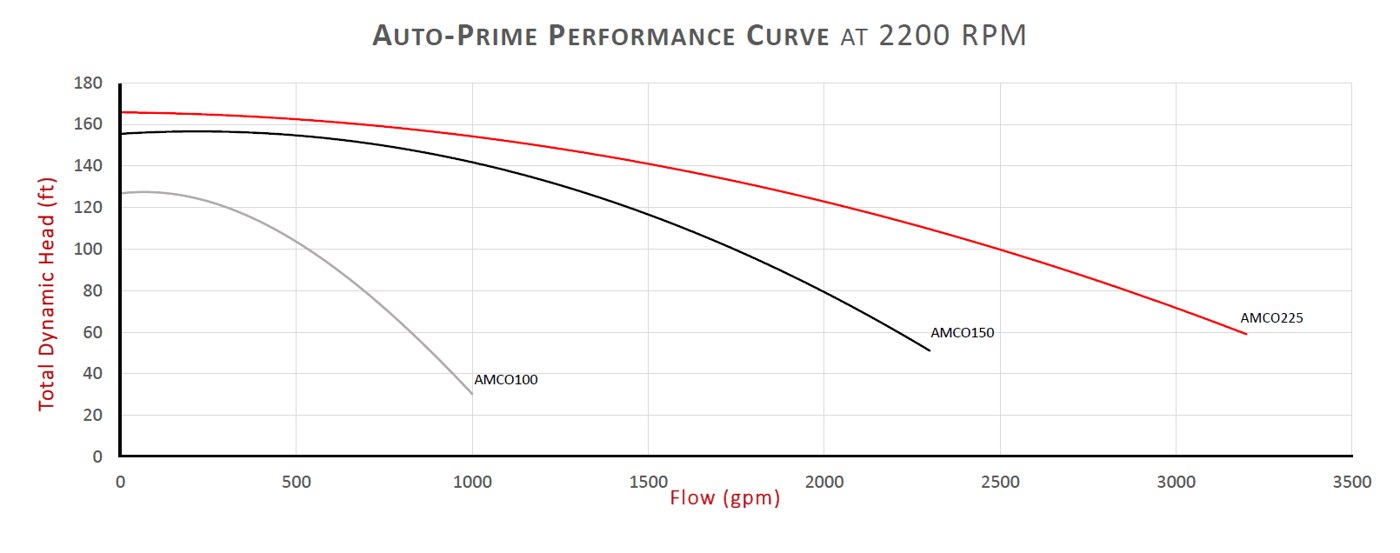

Auto-Prime Performance Curve at 2200 RPM
Total dynamic head (ft) versus flow (gpm) for the APCD100, APCD150 and APCD225 at 2200 RPM. Curves are nominal — contact AMCO for a duty-point selection on your application.
Downloads
APCD series technical datasheet
One PDF covering every model in the series: dimensions, performance figures, priming behaviour and configuration options.
AMCO APCD Series Datasheet
Includes APCD100, APCD150, APCD225 specifications and the combined performance curve.
335 KB PDF · 2 pages
Datasheet by model
