AMCO Pump Manufacturing, Inc.

STP Series

STP Self-Prime Trash Series

The STP Series is comprised of trash pumps and parts that are 100% interchangeable with the Gorman-Rupp Super T Series®. These self-priming trash pumps are a high solids handling, low maintenance series of pump.

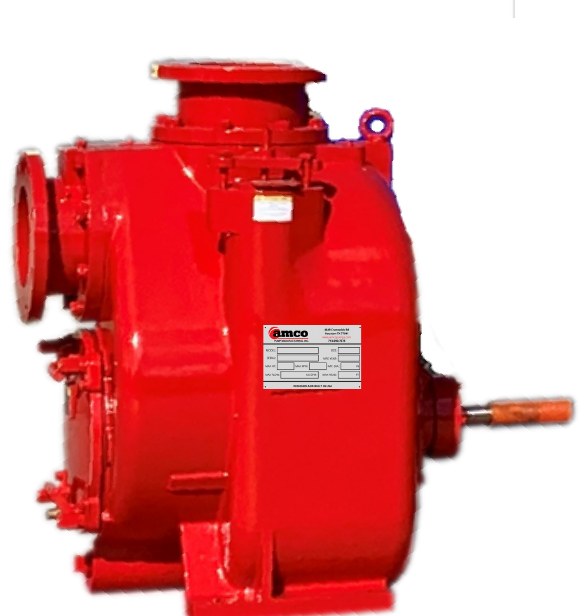

The STP model is offered in sizes 2"–10", each equipped with an easily replaceable rotating assembly. The adjustable 4-bolt front cover can be removed to clear debris from the interior of the pump. Available in diesel or electric drive.

Request a QuoteDownload DatasheetParts for this series

PDF · 2 pages · AMCO-STP-Series-Datasheet.pdf

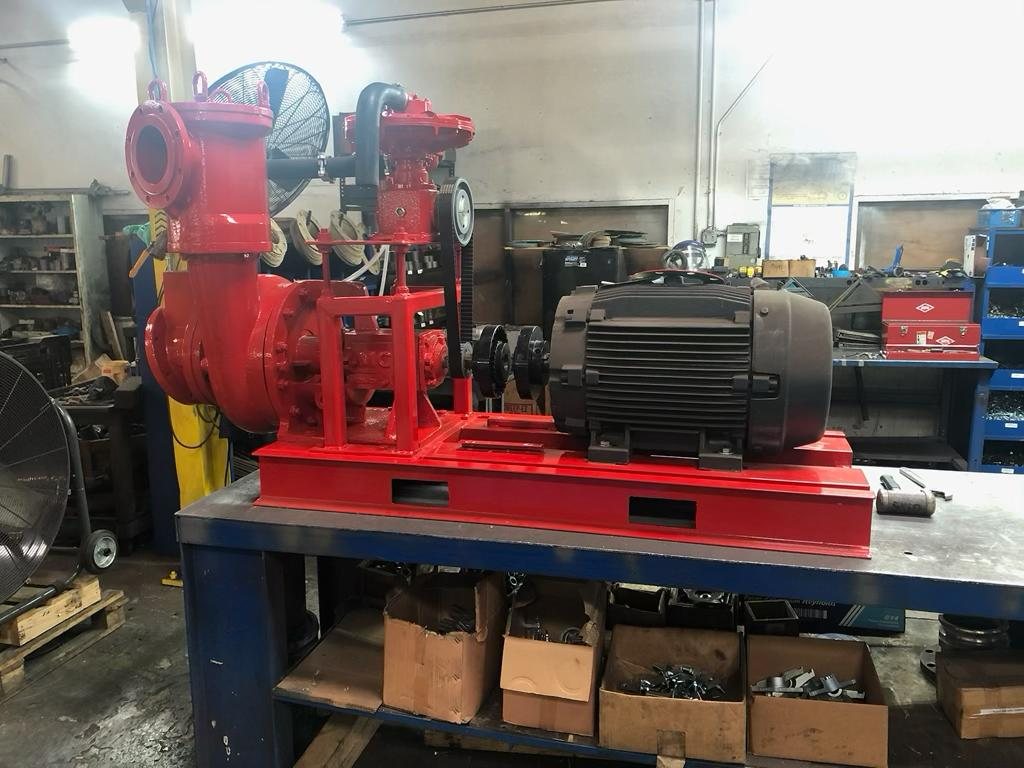

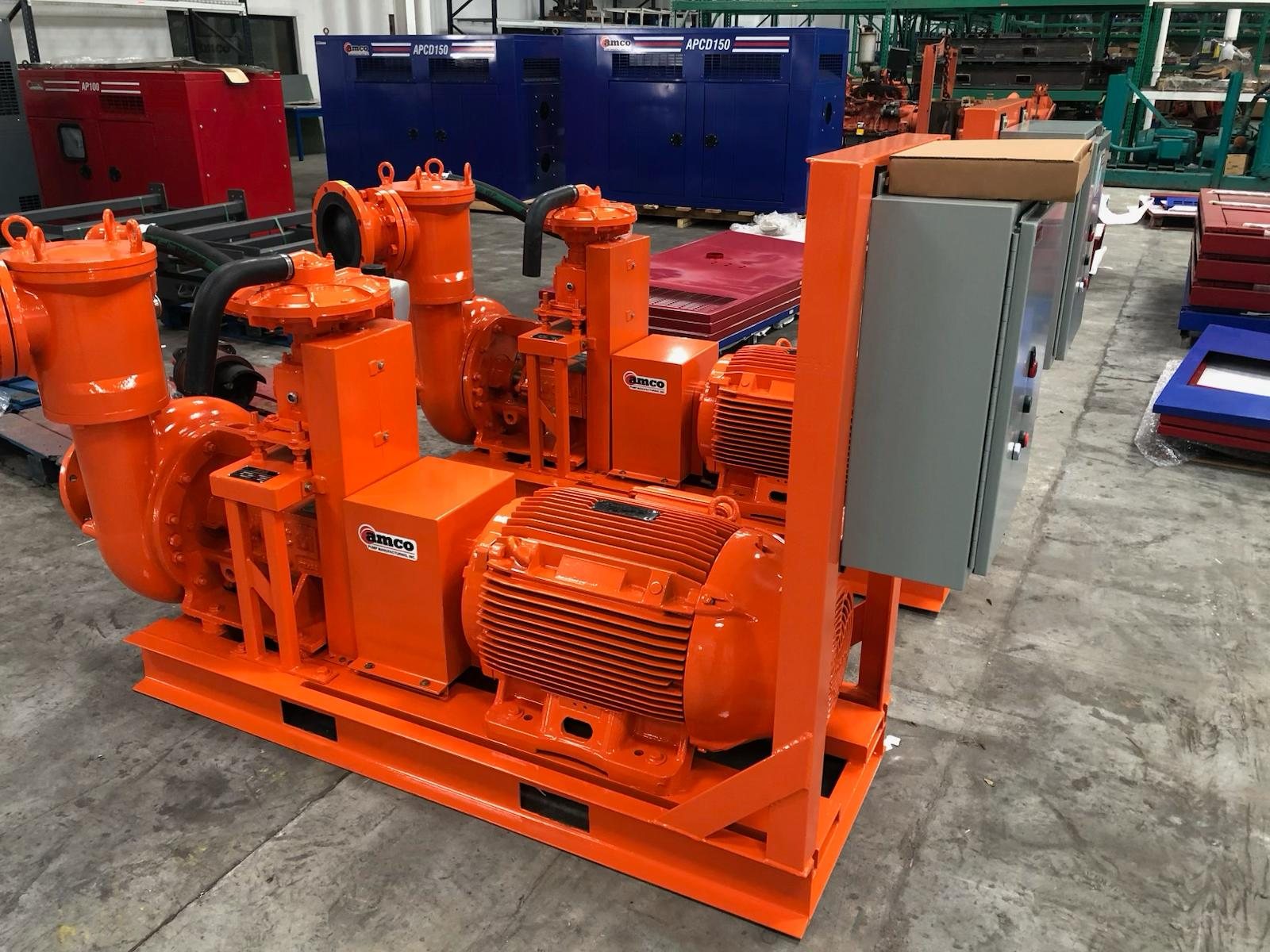

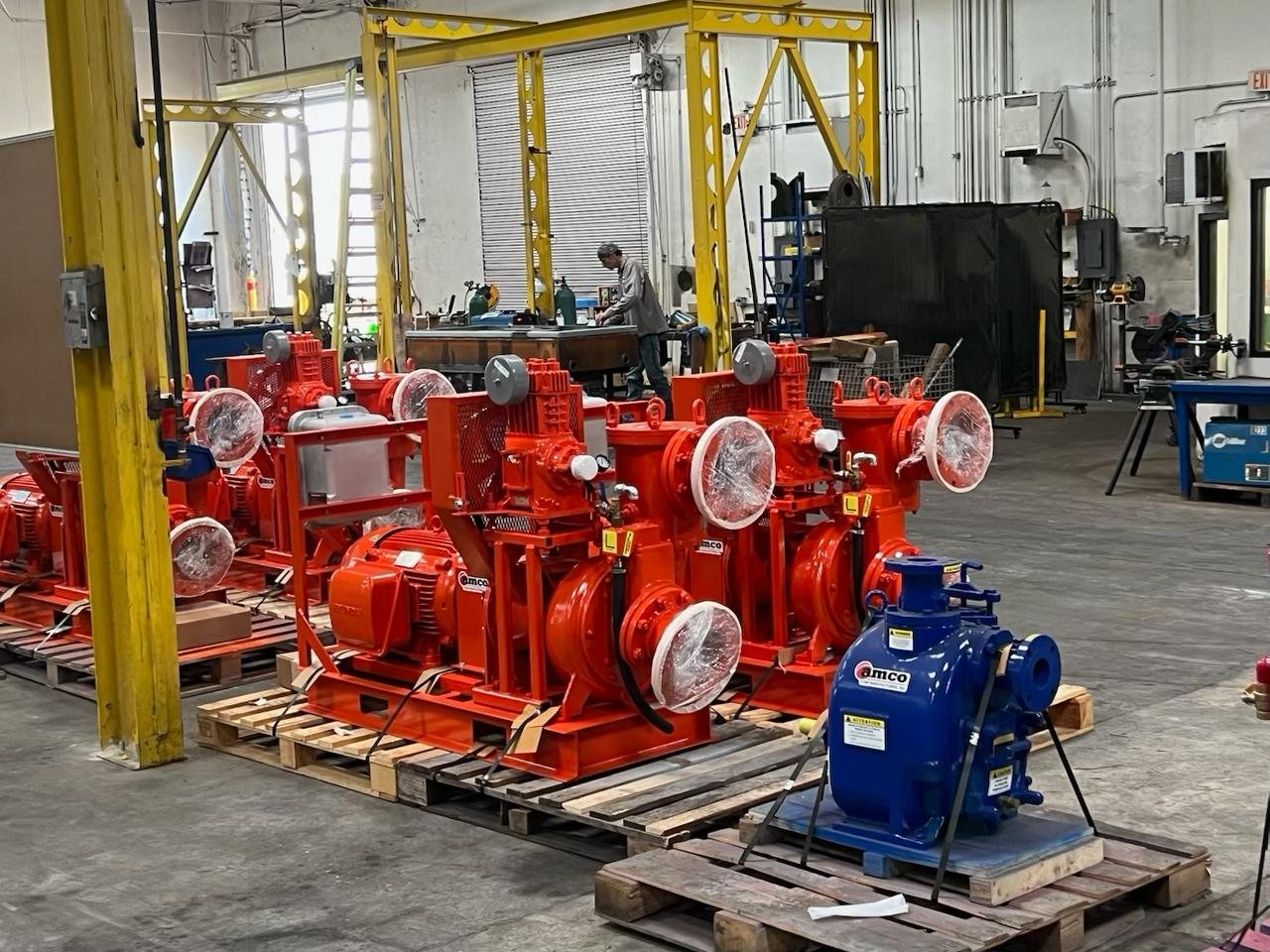

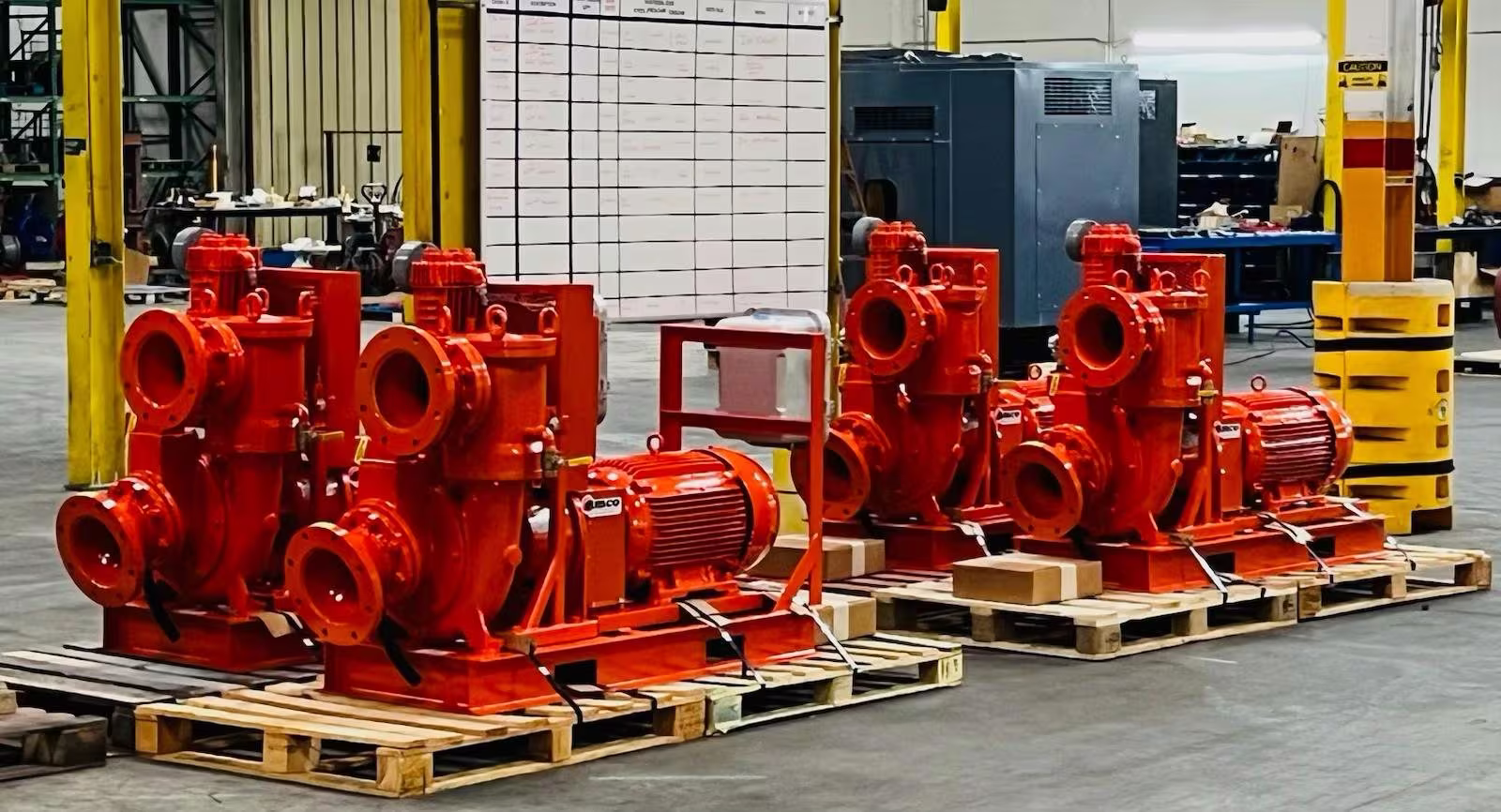

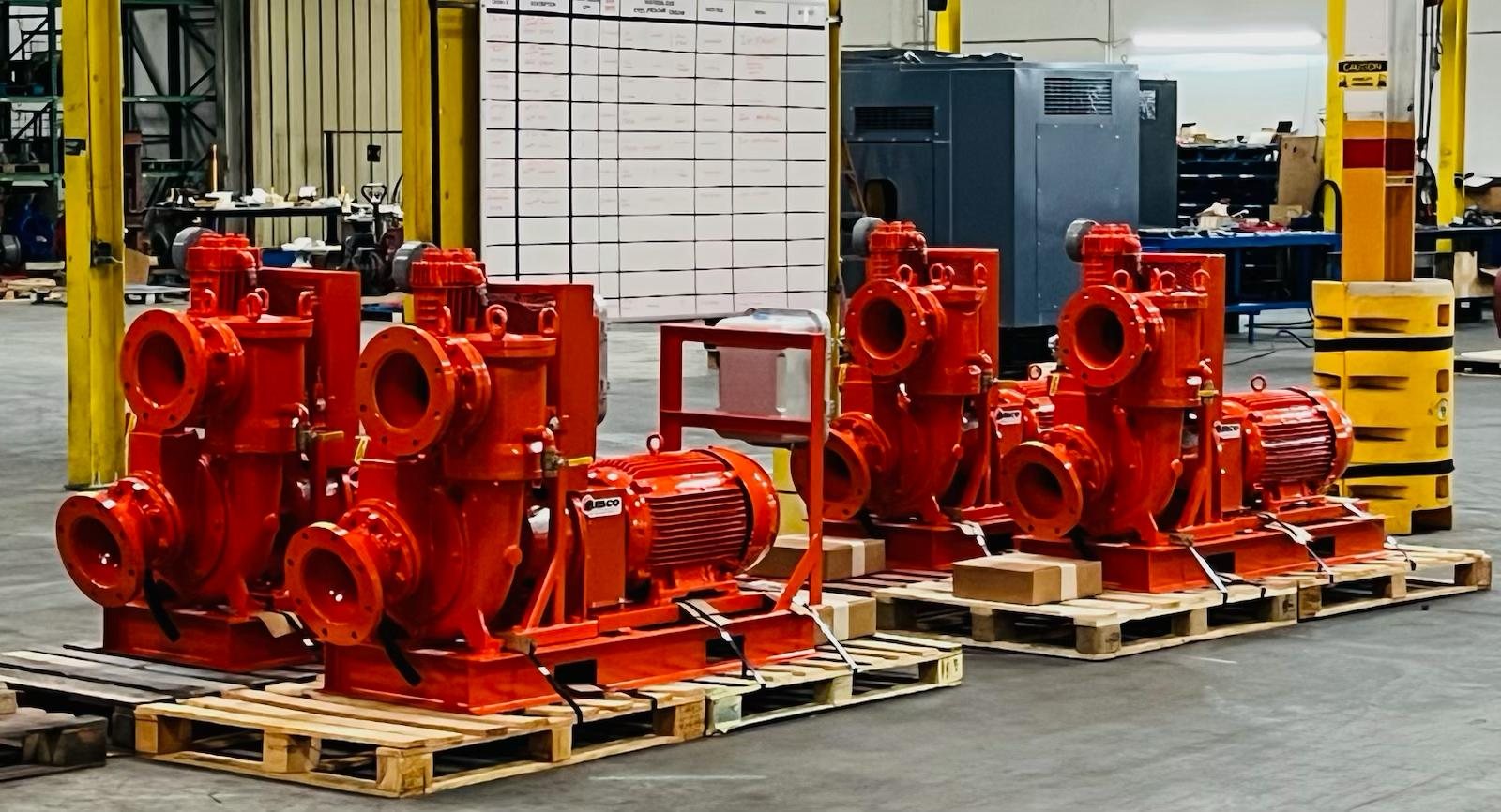

STP self-priming trash pump ends staged for build

6 shop photos — click to zoom and pan

Specifications

STP models

Performance figures are nominal at the stated engine speed. Contact us for a duty-point curve on your application.

STP model comparison

Key specifications for every STP model side by side. Figures are nominal at the stated engine speed.

STP model specification comparison
SpecificationSTP33x3 Trash PumpSTP44x4 Trash PumpSTP66x6 Trash PumpSTP88x8 Trash PumpSTP1010x10 Trash Pump
Suction x Discharge3" x 3"4" x 4"6" x 6"8" x 8"10" x 10"
Max Flow460 gpm810 gpm1640 gpm2840 gpm3290 gpm
Shutoff Head111 ft—152 ft—175 ft
Solids Handling2.5"3"3"3"3"
Impeller Diameter8.75"9.75"12.38"14.75"13.25"
Max Head—135 ft—128 ft—
Drive————Diesel or electric

Priming notes

STP units are self-priming trash pumps: the casing holds a liquid charge that lets the pump re-prime on its own after the initial fill.

  • Prime the casing once at start-up; the retained charge lets the pump re-prime automatically afterwards.
  • Large solids-handling volute with a clean-out cover for field access to the impeller and wear plate.
  • Suction lift to roughly 25 ft with an airtight suction hose and foot valve where required.

Applications

Typical duty

  • Slurry and sludge transfer
  • Industrial process water
  • Quarry and mining sumps
  • Agricultural waste

Configuration options

  • Highway trailer, single-axle site trailer or bolt-down skid base
  • Diesel engine or electric motor drive
  • Critically silenced acoustic enclosure (~69 dBA at 30 ft)
  • Extended-run fuel cells and containment bases
  • Ductile iron wet end with open impeller for solids passage

Tell us your flow, total head and solids size and we will size the unit for you.

Performance

STP Performance Curves by Model

Head versus flow for each self-prime trash pump model, including suction-lift and engine-speed curves as published on the AMCO model data sheets. All figures are nominal and for guidance only.

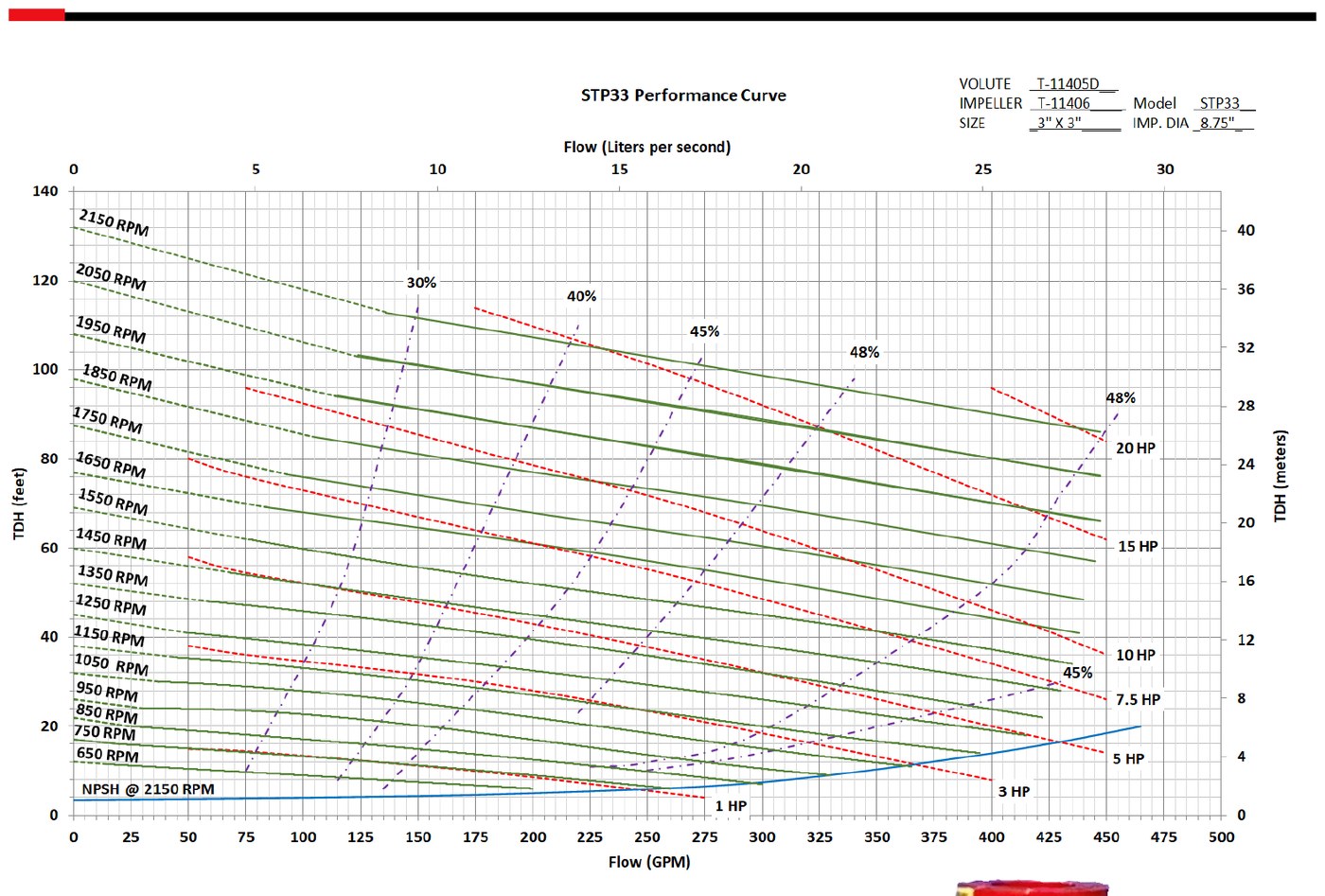

AMCO STP3 performance curve: total dynamic head in feet versus flow to 500 gpm, 650-2150 RPM, 8.75" impeller
STP3 performance curve — 3x3 Trash Pump

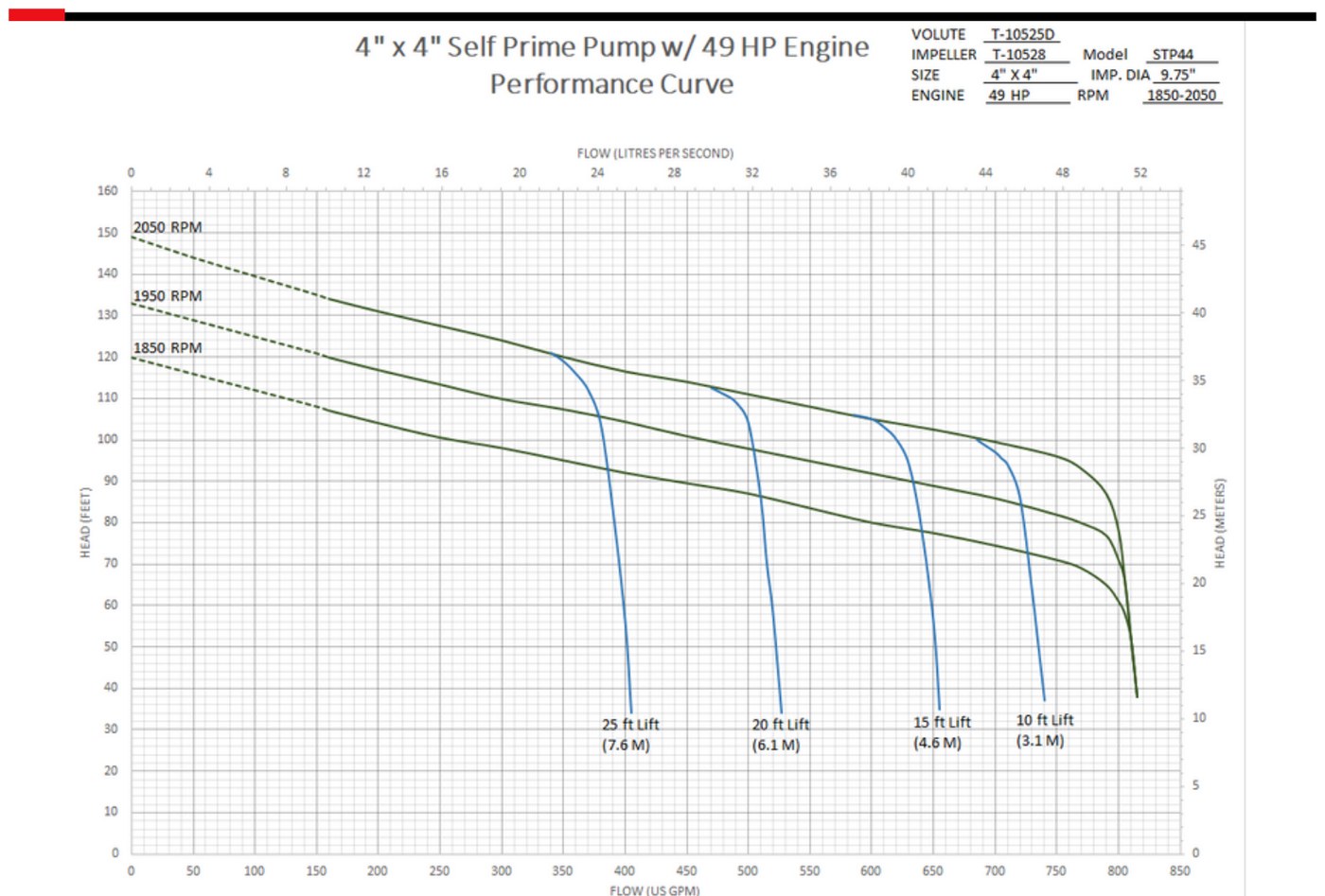

AMCO STP4 performance curve with 49 HP engine: head versus flow to 810 gpm at 1850-2050 RPM with suction lift curves
STP4 performance curve — 4x4 Trash Pump

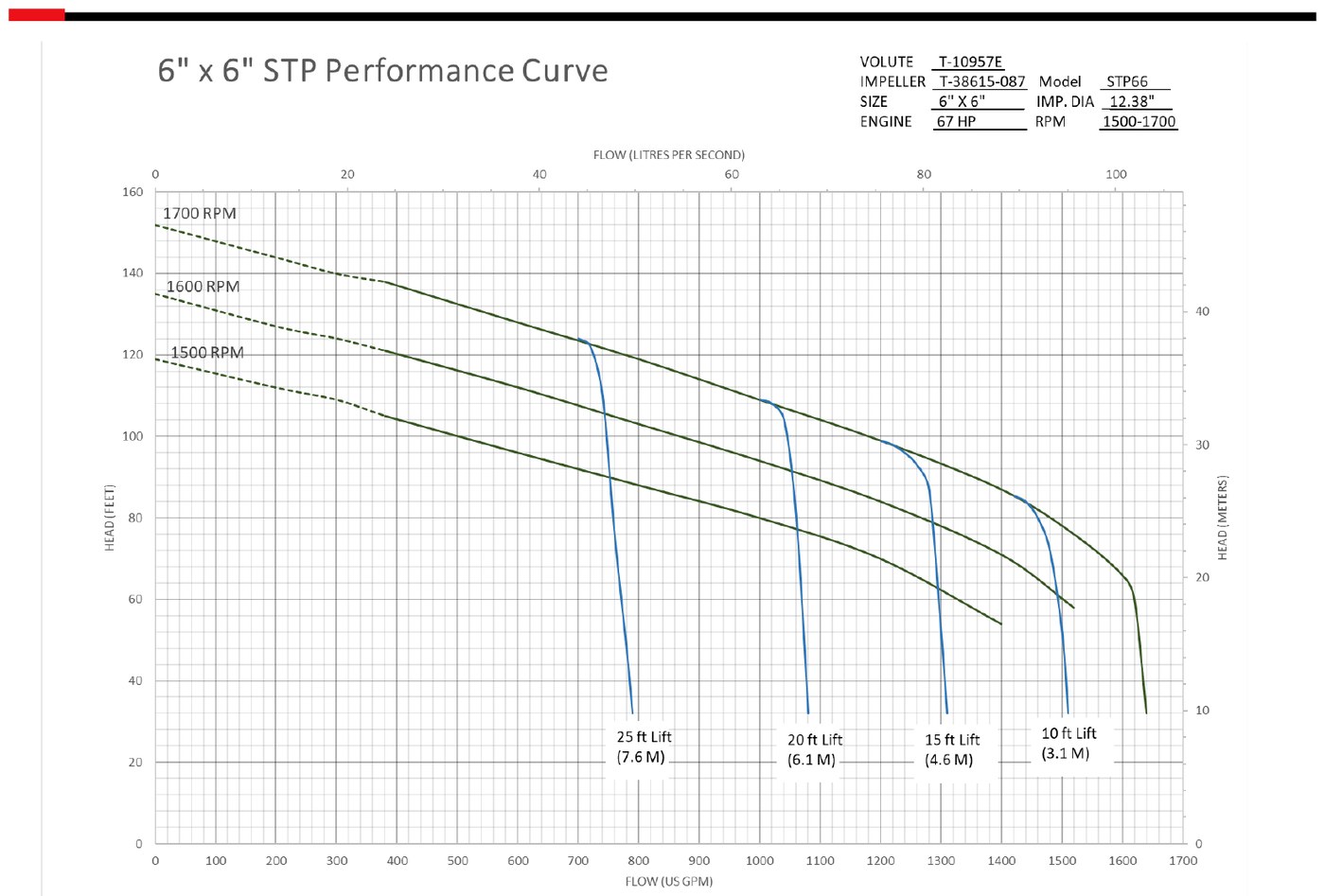

AMCO STP6 performance curve: head versus flow to 1,640 gpm at 1500-1700 RPM with 10 to 25 ft suction lift curves
STP6 performance curve — 6x6 Trash Pump

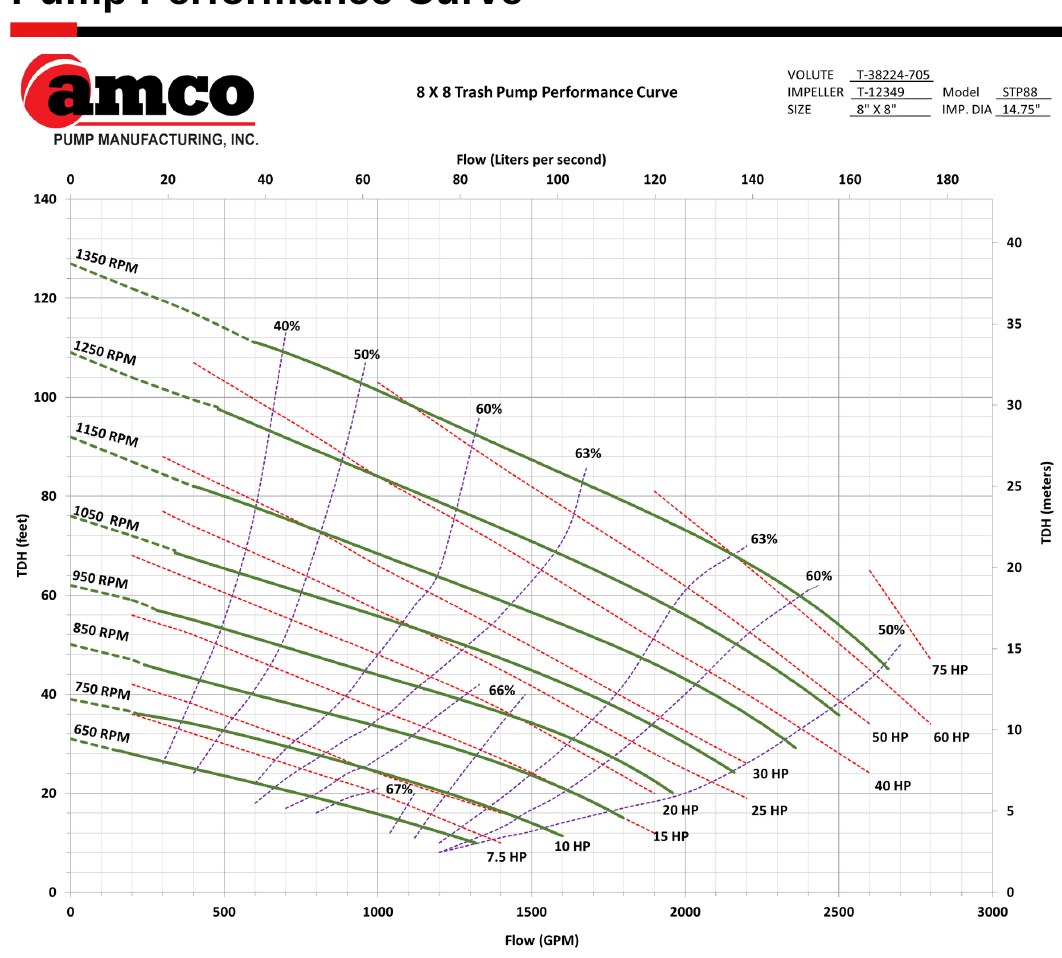

AMCO STP8 performance curve: head versus flow to 2,840 gpm, 650-1350 RPM, 14.75" impeller with efficiency and HP lines
STP8 performance curve — 8x8 Trash Pump

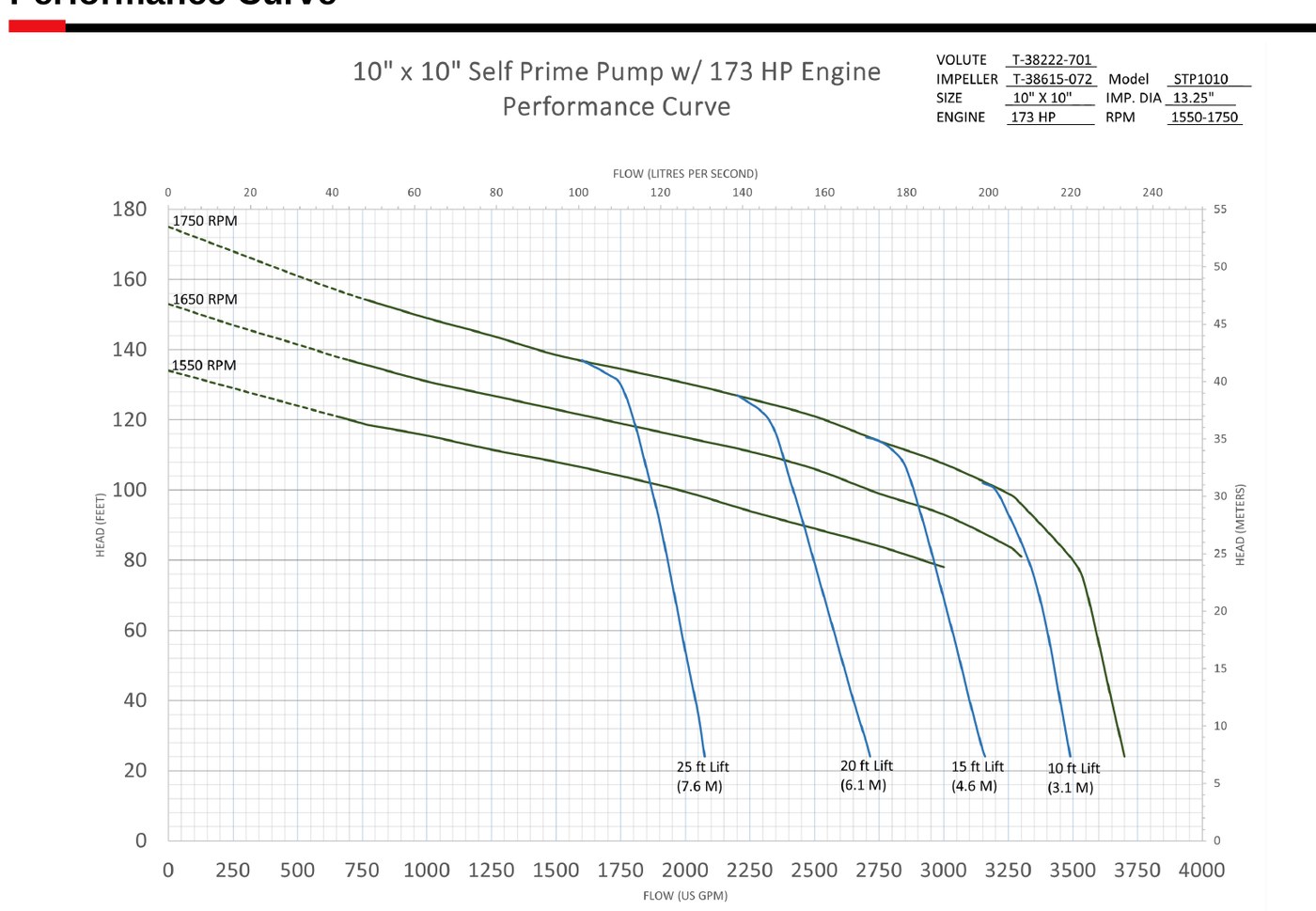

AMCO STP10 performance curve with 173 HP engine: head versus flow to 3,290 gpm at 1550-1750 RPM with suction lift curves
STP10 performance curve — 10x10 Trash Pump

Downloads

STP series technical datasheet

One PDF covering every model in the series: dimensions, performance figures, priming behaviour and configuration options.

AMCO STP Series Datasheet

Includes STP3, STP4, STP6, STP8, STP10 specifications and the combined performance curve.

PDF · 2 pages

Download series PDF

Datasheet by model

STP3(STP series PDF)STP4(STP series PDF)STP6(STP series PDF)STP8(STP series PDF)STP10(STP series PDF)
