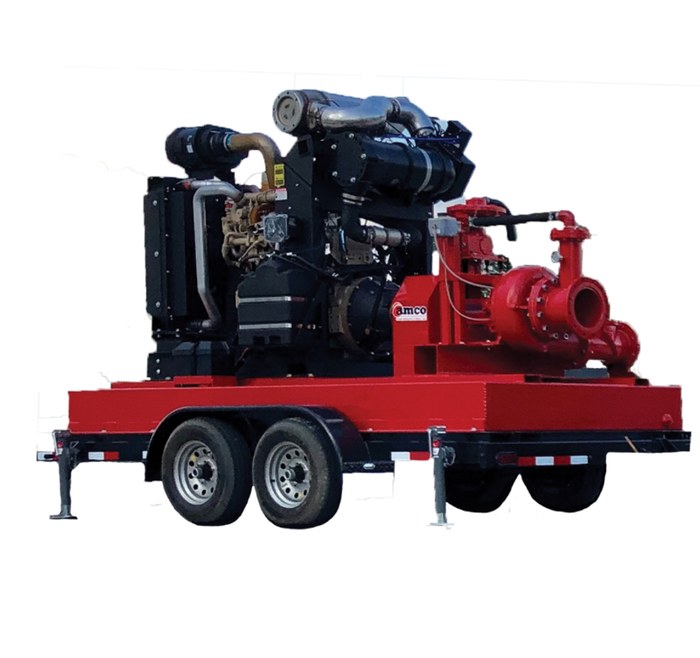

APHH3413
3x4x13 Auto-Prime Pump
- Suction x Discharge
- 4" x 3"
- Max Flow
- 700 gpm
- Max Head
- 285'
- Solids Handling
- 0.75"
- HP @ RPM
- 99 @ 2200
- Impeller Diameter
- 9"–13"
APHH Series
APHH Auto-Prime High Head Series

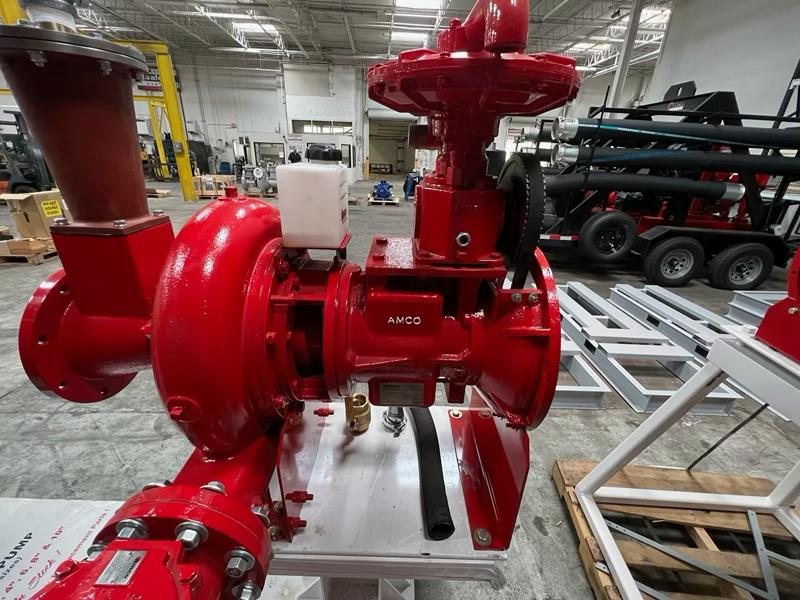

The Auto-Prime High Head (APHH) Series is offered in various sizes, each equipped with a vacuum auto-prime mechanism and oil bath mechanical seal. The wide range of impeller and suction/discharge sizes makes these pumps suitable for many applications.
Our pumps are manufactured from ductile iron and can prime up to 28' of suction lift. The open impeller design handles solids up to 2" in diameter. Available coupled to a diesel engine or an electric motor.
PDF · 2 pages · AMCO-APHH-Series-Datasheet.pdf

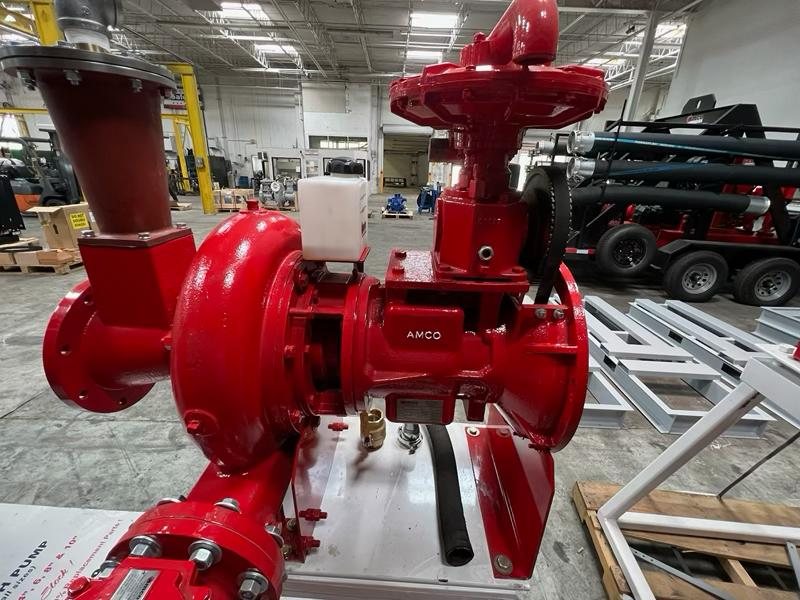

APHH high head pump end with vertical priming chamber
6 shop photos — click to zoom and pan
Specifications
APHH models
Performance figures are nominal at the stated engine speed. Contact us for a duty-point curve on your application.

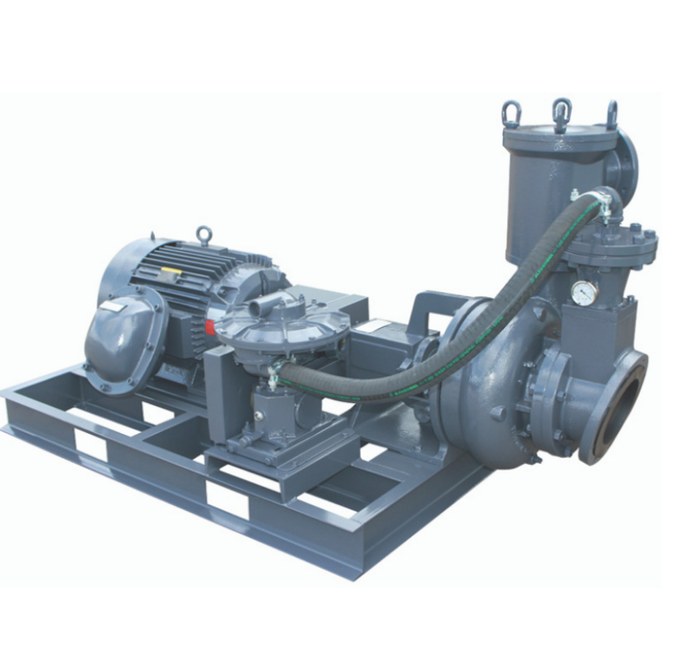

APHH5614
5x6x14 Auto-Prime Pump
- Suction x Discharge
- 6" x 5"
- Max Flow
- 1,500 gpm
- Max Head
- 315'
- Solids Handling
- 0.94"
- HP @ RPM
- 250 @ 2200
- Impeller Diameter
- 14"
APHH model comparison
Key specifications for every APHH model side by side. Figures are nominal at the stated engine speed.
| Specification | APHH34133x4x13 Auto-Prime Pump | APHH56145x6x14 Auto-Prime Pump |
|---|---|---|
| Suction x Discharge | 4" x 3" | 6" x 5" |
| Max Flow | 700 gpm | 1,500 gpm |
| Max Head | 285' | 315' |
| Solids Handling | 0.75" | 0.94" |
| HP @ RPM | 99 @ 2200 | 250 @ 2200 |
| Impeller Diameter | 9"–13" | 14" |
Applications
Typical duty
- High-pressure transfer
- Long-distance bypass
- Mine dewatering
- Well point systems
Configuration options

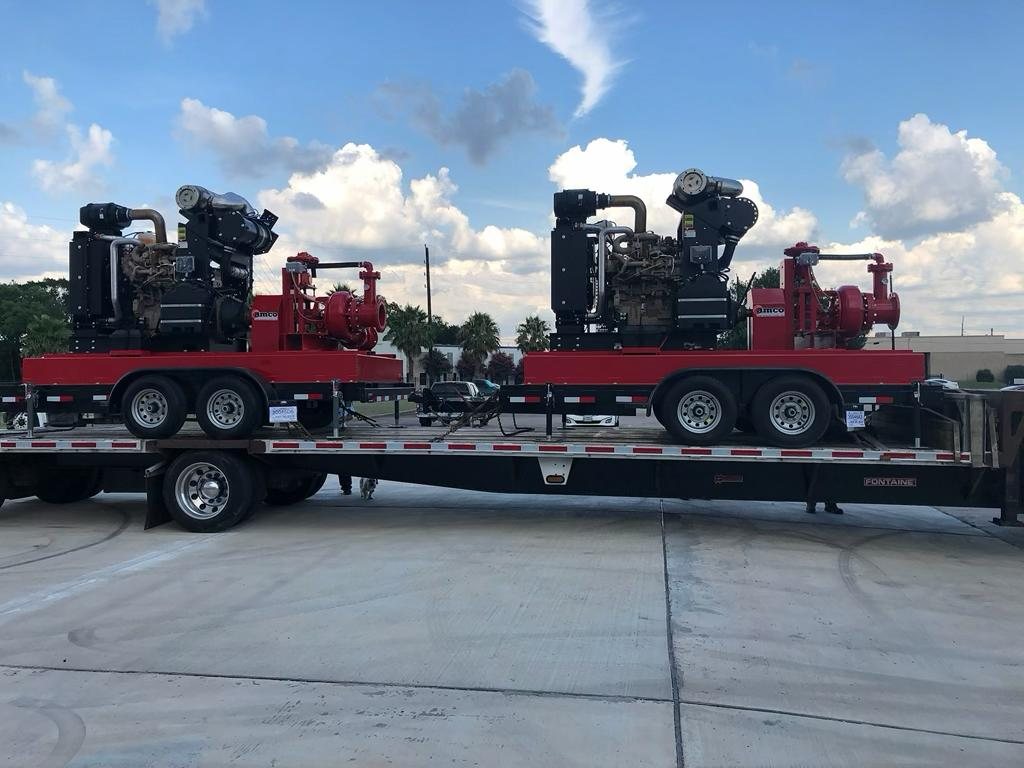

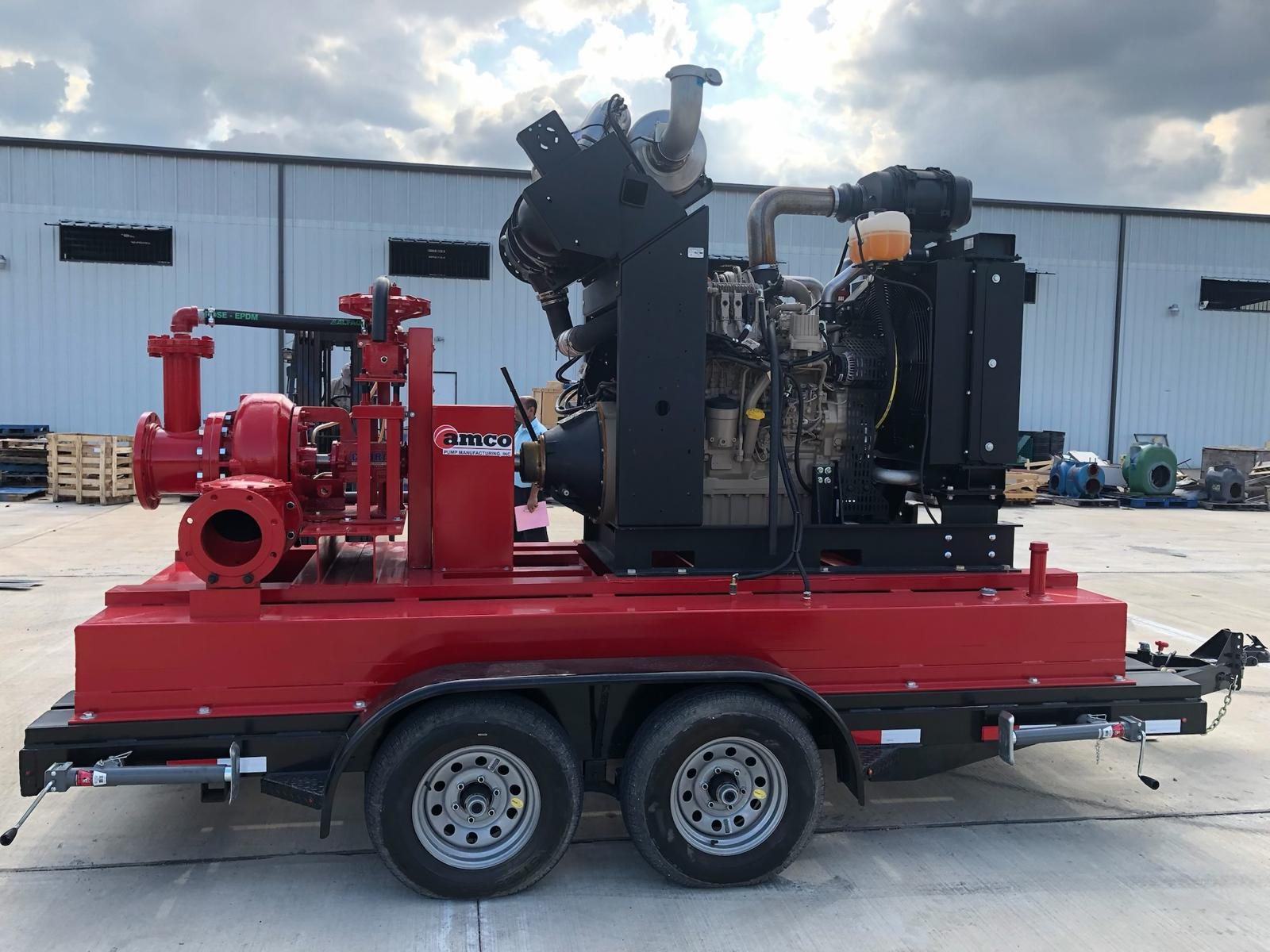

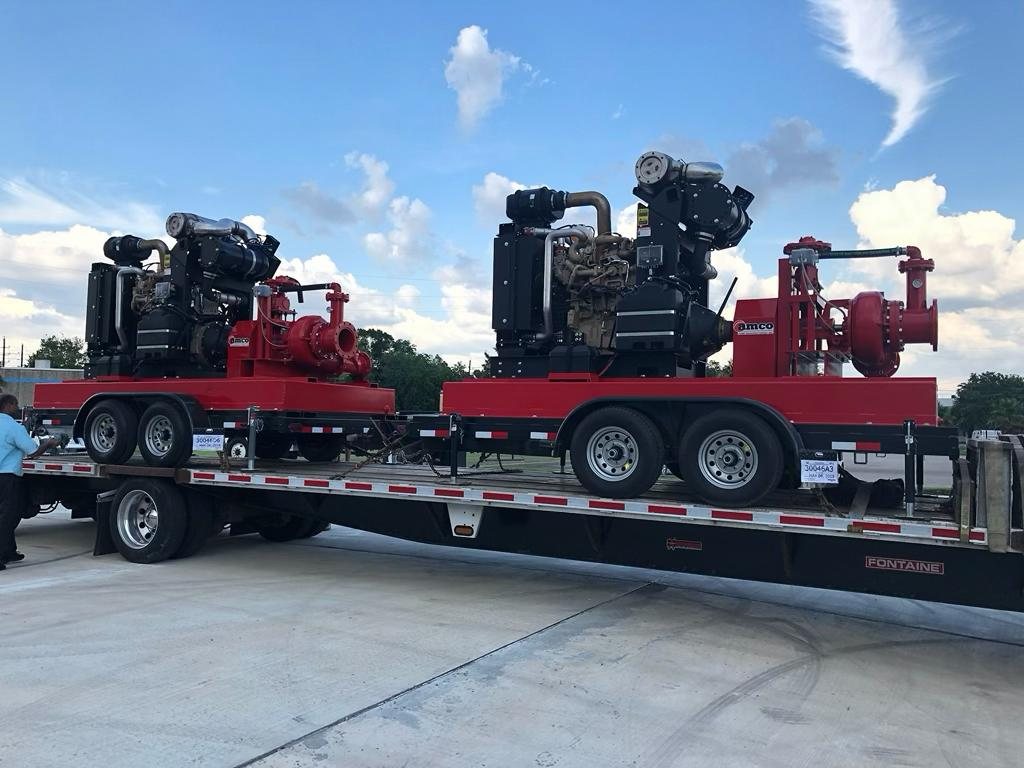

- Highway trailer, single-axle site trailer or bolt-down skid base

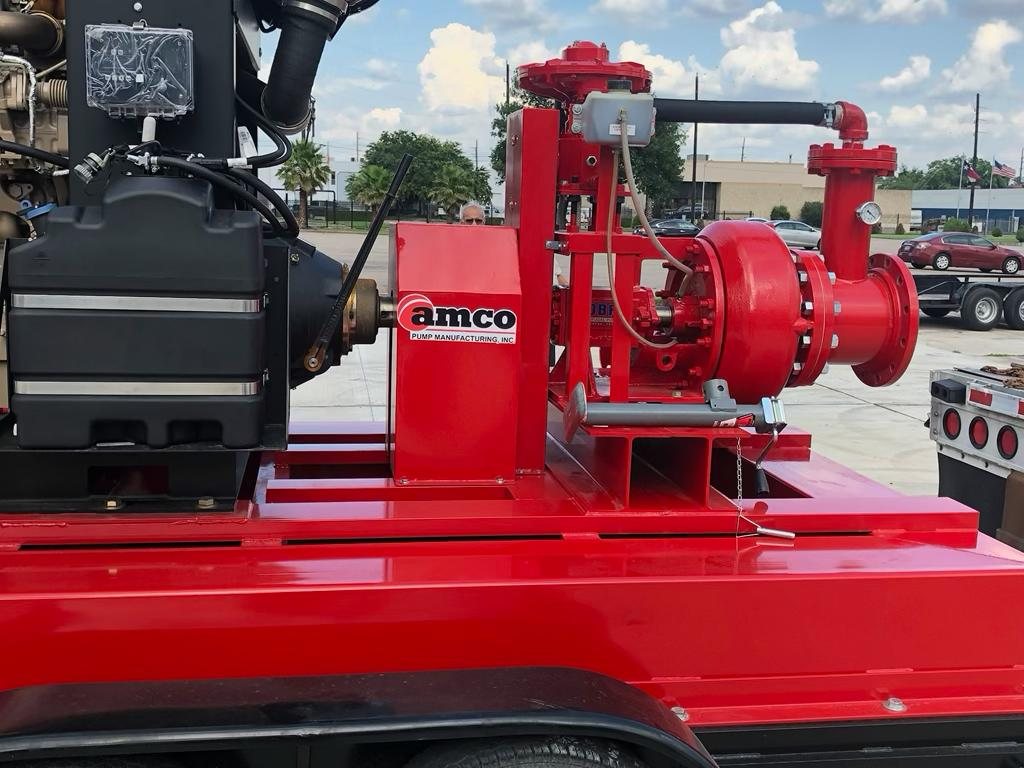

- Diesel engine or electric motor drive
- Critically silenced acoustic enclosure (~69 dBA at 30 ft)
- Extended-run fuel cells and containment bases
- Ductile iron wet end with open impeller for solids passage
Tell us your flow, total head and solids size and we will size the unit for you.
Performance
Performance curve not available
A published head-versus-flow curve for the APHH series is not posted online yet. Our application engineers will send the curve for the model and duty point you are sizing, usually the same business day.
Tell us your flow, total dynamic head, suction lift and solids size and we will send the APHH curve with a recommended model, or download the series datasheet for full specifications.
PDF · 2 pages · AMCO-APHH-Series-Datasheet.pdf
Downloads
APHH series technical datasheet
One PDF covering every model in the series: dimensions, performance figures, priming behaviour and configuration options.
AMCO APHH Series Datasheet
Includes APHH3413, APHH5614 specifications and the combined performance curve.
PDF · 2 pages
Datasheet by model
