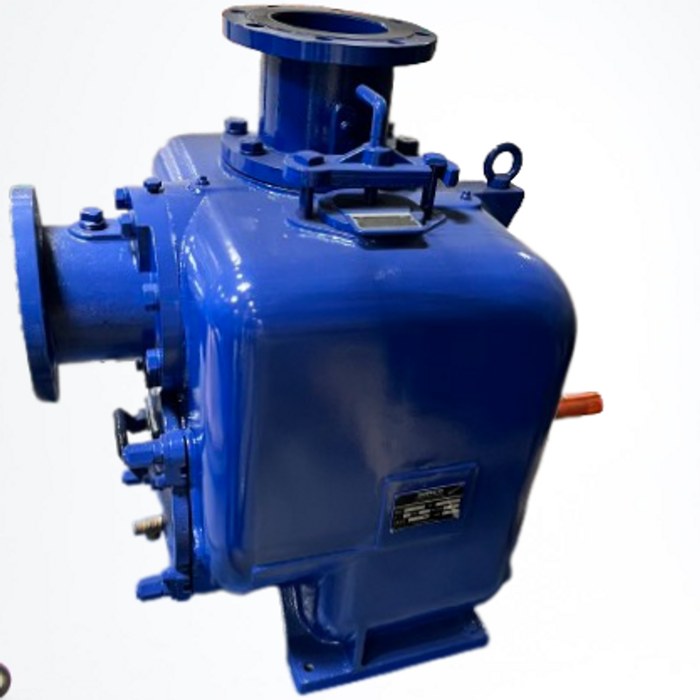

UTP2
2" x 2" Utility Trash Pump
- Suction x Discharge
- 2" x 2"
- Drive
- Diesel or electric
- Mounting
- Skid or trailer
UTP Series
UTP Utility Trash Series
The UTP Series is AMCO's utility trash pump line, built for solids-laden liquids and slurries where a compact, easy-to-service package matters more than maximum flow. The heavy-duty volute, replaceable wear plate and quick-release cover let crews clear debris in the field without breaking piping.
UTP units are offered skid-mounted or trailer-mounted, in diesel or electric drive, and can be fitted with an AMCO critically silenced enclosure rated near 70 dBA at 30 feet for noise-sensitive job sites.

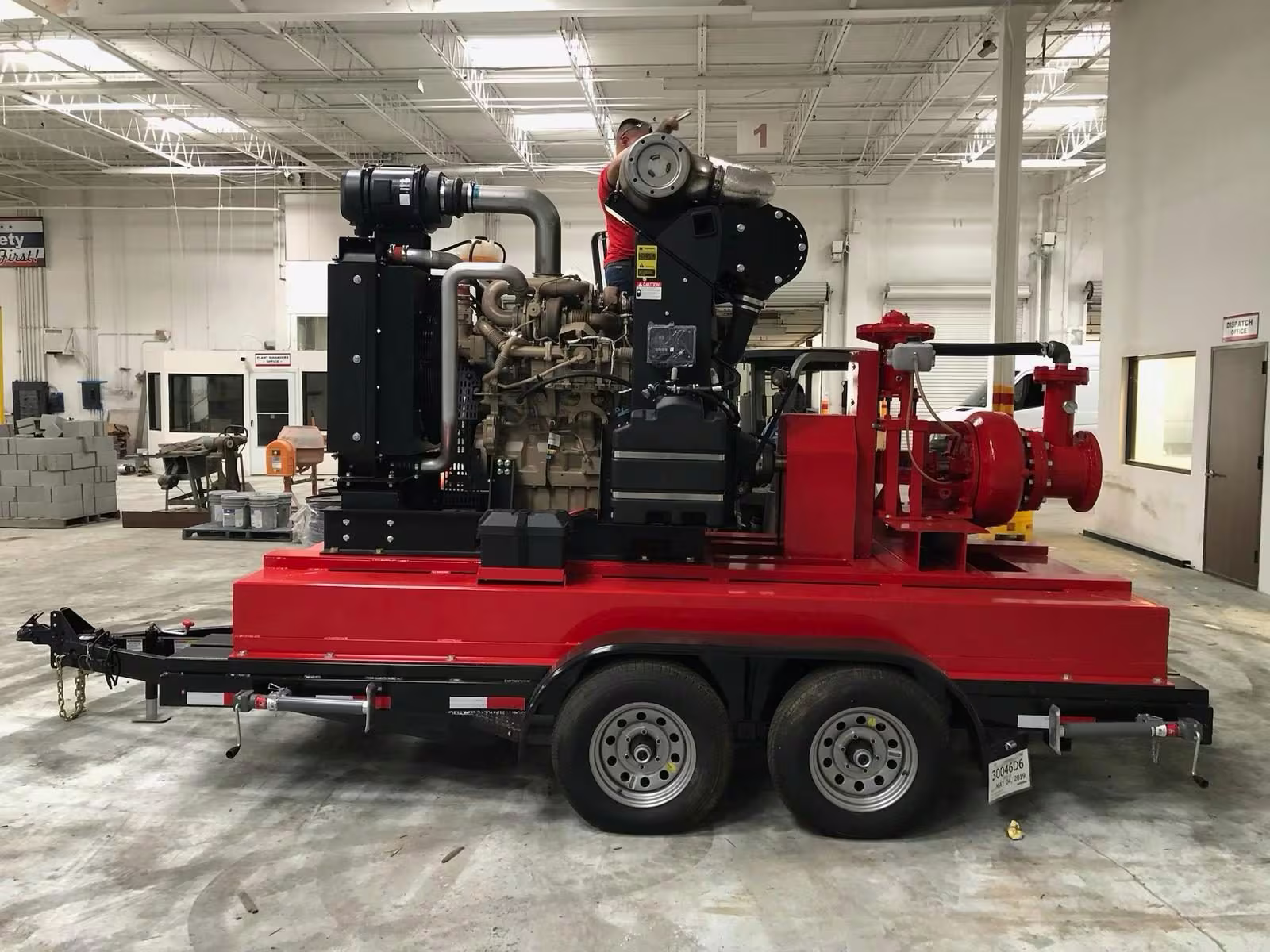

UTP utility trash pump trailers staged in the Houston yard

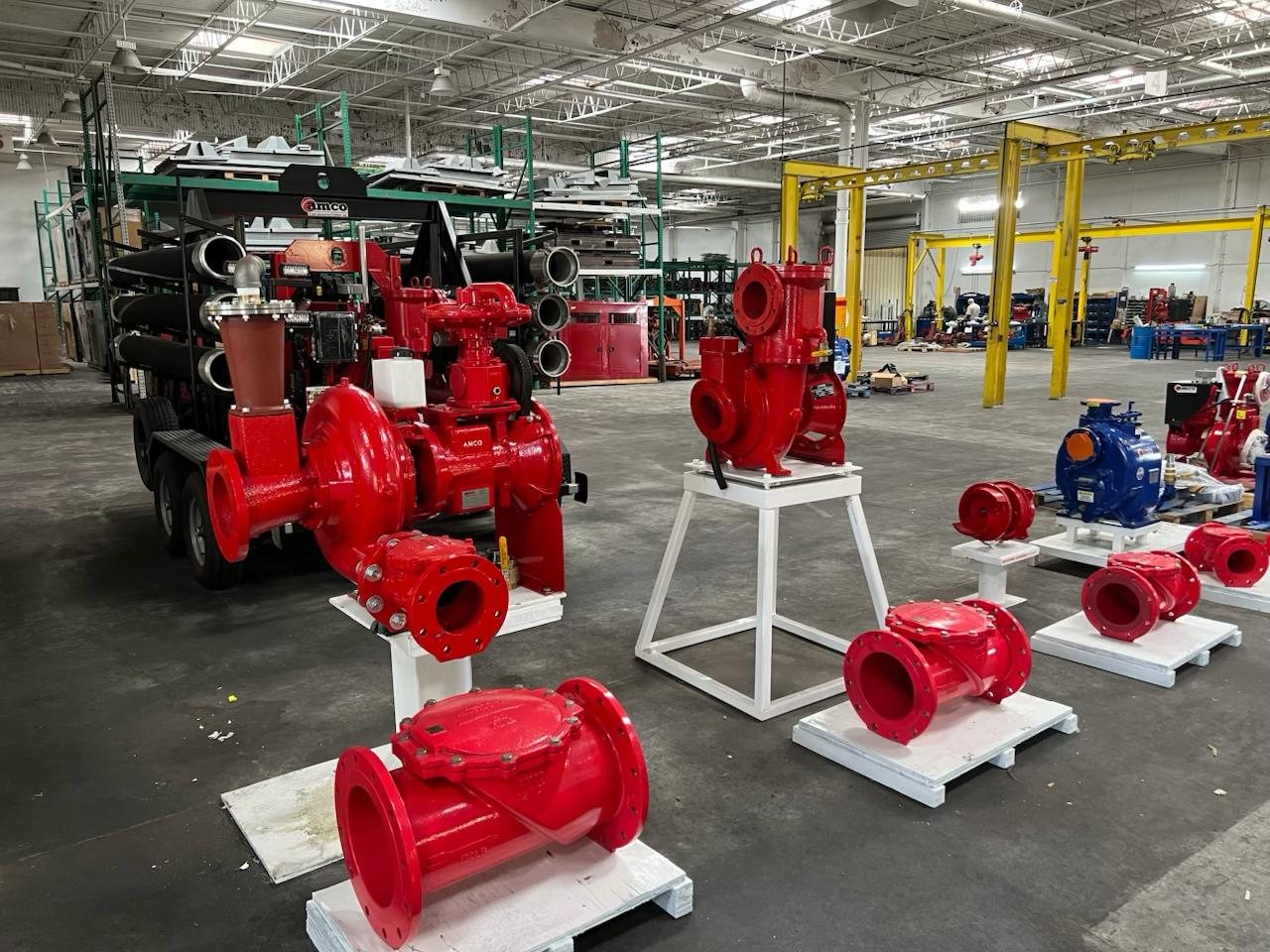

3 shop photos — click to zoom and pan
Specifications
UTP models
Performance figures are nominal at the stated engine speed. Contact us for a duty-point curve on your application.
UTP3
3" x 3" Utility Trash Pump
- Suction x Discharge
- 3" x 3"
- Drive
- Diesel or electric
- Mounting
- Skid or trailer
UTP4
4" x 4" Utility Trash Pump
- Suction x Discharge
- 4" x 4"
- Drive
- Diesel or electric
- Mounting
- Skid or trailer
UTP model comparison
Key specifications for every UTP model side by side. Figures are nominal at the stated engine speed.
| Specification | UTP22" x 2" Utility Trash Pump | UTP33" x 3" Utility Trash Pump | UTP44" x 4" Utility Trash Pump |
|---|---|---|---|
| Suction x Discharge | 2" x 2" | 3" x 3" | 4" x 4" |
| Drive | Diesel or electric | Diesel or electric | Diesel or electric |
| Mounting | Skid or trailer | Skid or trailer | Skid or trailer |
Priming notes
UTP utility trash pumps are self-priming and built for quick portable set-ups on construction and rental duty.
- Manual initial casing fill, then automatic re-prime on subsequent starts.
- Handles trash and slurry with an open impeller and replaceable wear plate.
- Suction lift to roughly 25 ft depending on model and hose configuration.
Applications
Typical duty
- Solids-laden liquids and slurries
- Construction and rental fleets
- Industrial cleanup and sumps
- Noise-sensitive job sites
Configuration options
- Highway trailer, single-axle site trailer or bolt-down skid base
- Diesel engine or electric motor drive
- Critically silenced acoustic enclosure (~69 dBA at 30 ft)
- Extended-run fuel cells and containment bases
- Ductile iron wet end with open impeller for solids passage
Tell us your flow, total head and solids size and we will size the unit for you.
Performance
Performance curve not available
A published head-versus-flow curve for the UTP series is not posted online yet. Our application engineers will send the curve for the model and duty point you are sizing, usually the same business day.
Tell us your flow, total dynamic head, suction lift and solids size and we will send the UTP curve with a recommended model.
